西门康·让电力延续
Ximenkang·Keep the electricity going

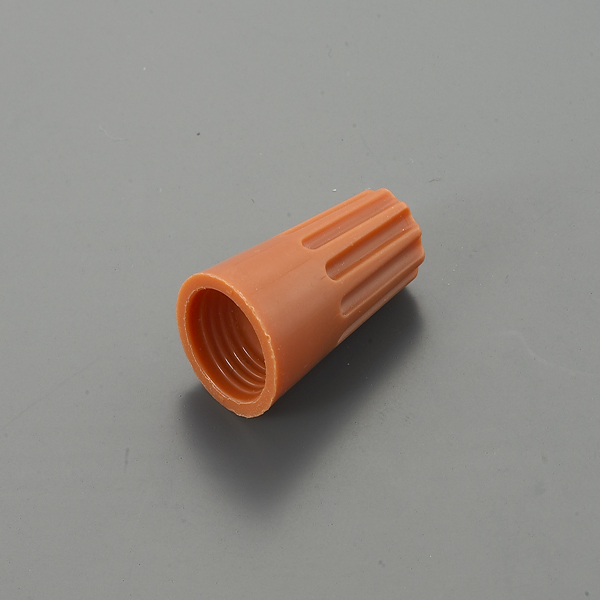

螺旋式压线帽
600

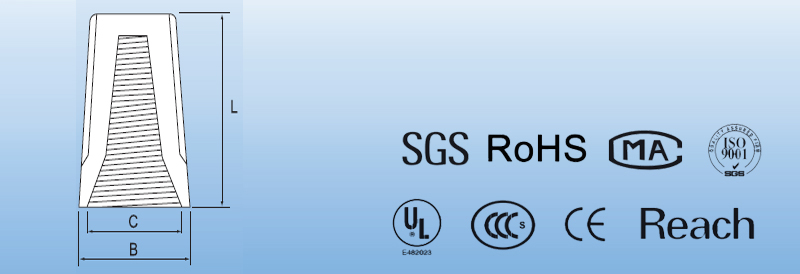

外型尺寸

产品参数

型号

ltem no

导线组合范围

Cable arrange

尺寸Dimesion（mm）

颜色 Color

B C L
SP 1 最少0.75×1+0.5×1最多1.5×2min0.75×1+0.5×1max×1.5×2 8.5 6.7 15.0 灰色 gray
SP 2 最少0.75×3最多1.5×3+1×1min0.75×3max1.5×3 10.1 7.4 17.5 蓝色 blue
SP 3 最少0.75×3最多1.5×3+1×1min0.75×3max1.5×3+1×1 12.6 9.9 22.1 橙色 orange
SP 4 最少0.25×1+0.75×1最多2.5×4+0.75×1min0.25×1+0.75×1max2.5×4+0.75×1 13.7 11.0 24.5 黄色 yellow

SP 6

最少0.25×2最多6×2+4×2min0.25×2×1max6×2+4×2
 16.0 13.0 16.5 红色 red
