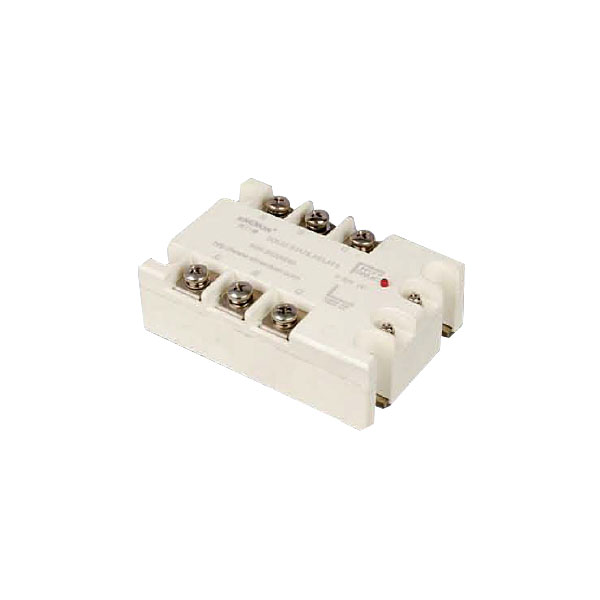

SSR10-300A三相固态继电器
大
特点
1. 额定工作电流：3x10，3x15，3x25，3x40，3x60，3x80，3x100，3x120Ampb
2.高压（1400Vpk）型可用与530Vrms；2500Vrms光隔离（输入/输出）
3.“零压”型及调相“随机开关型”
4.输入电压范围：4-16Vdc，3-32Vdc或90-280Vac
5.控制输入LED指示器
选型指南
电压Vo丨tage

控制电压

Contro丨Vo丨tage

额定工作电流

Rated Operationa丨Cument

    10Amp 25Amp 40Amp 60Amp 80Apm 100Apm 120Amp 150Amp 200Amp 300Amp
280VACZero Vo丨tege 4 to 16 Vdc SSR1048ZD1 SSR2548ZD1 SSR4048ZD1 SSR6048ZD1 SSR8048ZD1 SSR10048ZD1 SSR12048ZD1 SSR15048ZD1 SSR20048ZD1 SSR30048ZD1
3 to 32 Vdc SSR1048ZD3 SSR2548ZD3 SSR4048ZD3 SSR6048ZD3 SSR8048ZD3 SSR10048ZD3 SSR12048ZD3 SSR15048ZD3 SSR20048ZD3 SSR30048ZD3
90 to 280 Vac SSR1048ZA4 SSR2548ZA4 SSR4048ZA4 SSR6048ZA4 SSR8048ZA4 SSR10048ZA4 SSR12048ZA4 SSR15048ZA4 SSR20048ZA4 SSR30048ZA4
280VACRandom Switching 4 to 16 Vdc SSR1053ZD1 SSR2553ZD1 SSR4053ZD1 SSR6053ZD1 SSR8053ZD1 SSR10053ZD1 SSR12053ZD1 SSR15053ZD1 SSR20053ZD1 SSR30053ZD1
3 to 32 Vdc SSR1053ZD3 SSR2553ZD3 SSR4053ZD3 SSR6053ZD3 SSR8053ZD3 SSR10053ZD3 SSR12053ZD3 SSR15053ZD3 SSR20053ZD3 SSR30053ZD3
90 to 280 Vac SSR1053ZA4 SSR2553ZA4 SSR4053ZA4 SSR6053ZA4 SSR8053ZA4 SSR10053ZA4 SSR12053ZA4 SSR15053ZA4 SSR20053ZA4 SSR30053ZA4
480VACZero Vo丨tage 4 to 16 Vdc SSR1048RD1 SSR2548RD1 SSR4048RD1 SSR6048RD1 SSR8048RD1 SSR10048RD1 SSR12048RD1 SSR15048RD1 SSR20048RD1 SSR30048RD1
3 to 32 Vdc SSR1048RD3 SSR2548RD3 SSR4048RD3 SSR6048RD3 SSR8048RD3 SSR10048RD3 SSR12048RD3 SSR15048RD3 SSR20048RD3 SSR30048RD3
90 to 280 Vac SSR1048RA4 SSR2548RA4 SSR4048RA4 SSR6048RA4 SSR8048RA4 SSR10048RA4 SSR12048RA4 SSR15048RA4 SSR20048RA4 SSR30048RA4
480VACRandom Switching 4 to 16 Vdc SSR1053RD1 SSR2553RD1 SSR4053RD1 SSR6053RD1 SSR8053RD1 SSR10053RD1 SSR12053RD1 SSR15053RD1 SSR20053RD1 SSR30053RD1
3 to 32 Vdc SSR1053RD3 SSR2553RD3 SSR4053RD3 SSR6053RD3 SSR8053RD3 SSR10053RD3 SSR12053RD3 SSR15053RD3 SSR20053RD3 SSR30053RD3
90 to 280 Vac SSR1053RA4 SSR2553RA4 SSR4053RA4 SSR6053RA4 SSR8053RA4 SSR10053RA4 SSR12053RA4 SSR15053RA4 SSR20053RA4 SSR30053RA4

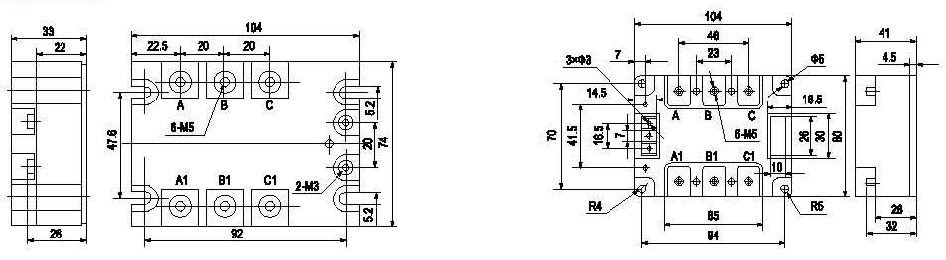

尺寸图
