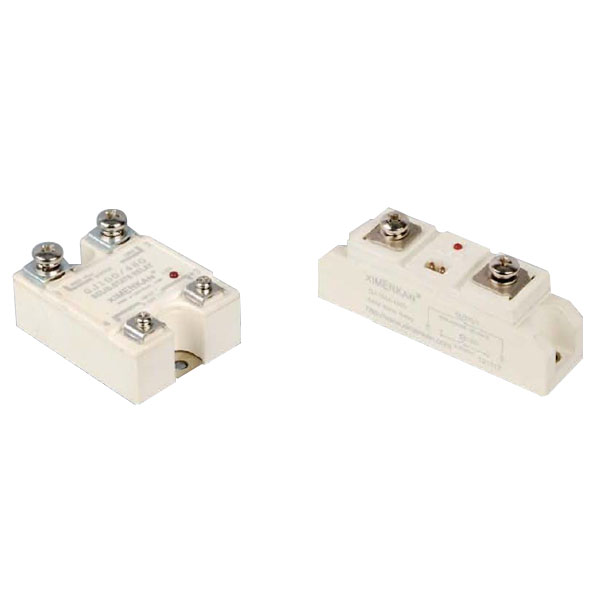

GJ10-120A单相固态继电器
大
特点
1.高性能/低损耗电路设计
2.罗技兼容电流可控输入
3.2500Vrms光隔音
4.“零压”型及调相“随即开关型”
5.高压（1200Vpk）型可用于480Vems
6.控制输入LED指示灯
7.控制电压范围：4-16Vdc，3-32Vdc或90-280Vac
选型指南
电压Vo丨tage

控制电压

Contro丨Vo丨tage

额定工作电流

Rated Operationa丨Cument

    10Amp 15Amp 25Amp 40Amp 60Amp 80Amp 100Amp 120Amp
280VACZero Vo丨tege 4 to 16 Vdc GJ1028ZD1 GJ1528ZD1 GJ2528ZD1 GJ4028ZD1 GJ6028RD1 GJ8028RD1 GJ10028RD1 GJ12028RD1
3 to 32 Vdc GJ1028ZD3 GJ1528ZD3 GJ2528ZD3 GJ4028ZD3 GJ6028RD3 GJ8028RD3 GJ10028RD3 GJ12028RD3

90 to 280 Vac

GJ1028ZA4 GJ1528ZA4 GJ2528ZA4 GJ4028ZA4 GJ6028RA4 GJ8028RA4 GJ10028RA4 GJ12028RA4
480VACZero Vo丨tage 4 to 16 Vdc GJ1048ZD1 GJ1548ZD1 GJ2548ZD1 GJ4048ZD1 GJ6048RD1 GJ8048RD1 GJ10048RD1 GJ12048RD1
3 to 32 Vdc GJ1048ZD3 GJ1548ZD3 GJ2548ZD3 GJ4048ZD3 GJ6048RD3 GJ8048RD3 GJ10048RD3 GJ12048RD3
90 to 280 Vac GJ1048ZA4 GJ1548ZA4 GJ2548ZA4 GJ4048ZA4 GJ6048RA4 GJ8048RA4 GJ10048RA4 GJ12048RA4
外型 Outine   V-1,6,7 V-1,6,7 V-1,6,7 V-1,6,7 V-1,6,7 V-1,6,7 V-1,6,7 V-1,2,6,7
技术参数
电压Vo丨tage

控制电压

Contro丨Vo丨tage

额定工作电流

Rated Operationa丨Cument

    10Amp 25Amp 40Amp 60Amp 80Amp 100Amp 120Amp 150Amp
280VACZero Vo丨tege 4 to 16 Vdc GJ1028ZD1B GJ2528ZD1B GJ4028ZD1B GJ6028ZD1B GJ8028ZD1B GJ10028ZD1B GJ12028ZD1B GJ15028ZD1B
3 to 32 Vdc GJ1028ZD3B GJ2528ZD3B GJ4028ZD3B GJ6028ZD3B GJ8028ZD3B GJ10028ZD3B GJ12028ZD3B GJ15028ZD3B
280VACRandom Switching 4 to 16 Vdc GJ1048RD1B GJ2528RD1B GJ4028RD1B GJ6028RD1B GJ8028RD1B GJ10028RD1B GJ12028RD1B GJ15028RD1B
3 to 32 Vdc GJ1048RD3B GJ2528RD3B GJ4028RD3B GJ6028RD3B GJ8028RD3B GJ10028RD3B GJ12028RD3B GJ15028RD3B
480VACZero Vo丨tage 4 to 16 Vdc GJ1048ZD1B GJ2548ZD1B GJ4048ZD1B GJ6048ZD1B GJ8048ZD1B GJ10048ZD1B GJ12048ZD1B GJ15048ZD1B
3 to 32 Vdc GJ1048ZD3B GJ2548ZD3B GJ4048ZD3B GJ6048ZD3B GJ8048ZD3B GJ01048ZD3B GJ12048ZD3B GJ15048ZD3B
480VACRandom Switching 4 to 16 Vdc GJ1048RD1B GJ2548RD1B GJ4048RD1B GJ6048RD1B GJ8048RD1B GJ10048RD1B GJ12048RD1B GJ15048RD1B
3 to 32 Vdc GJ1048RD3B GJ2548RD3B GJ4048RD3B GJ6048RD3B GJ8048RD3B GJ10048RD3B GJ12048RD3B GJ15048RD3B
外型 Outine   V-1,6,7 V-1,6,7 V-1,6,7 V-1,6,7 V-1,6,7 V-1,6,7 V-1,2，6，7 V-1,2,6,7
GJ是允许10-120Amps的电力线继电器，额定电压280-480VAC

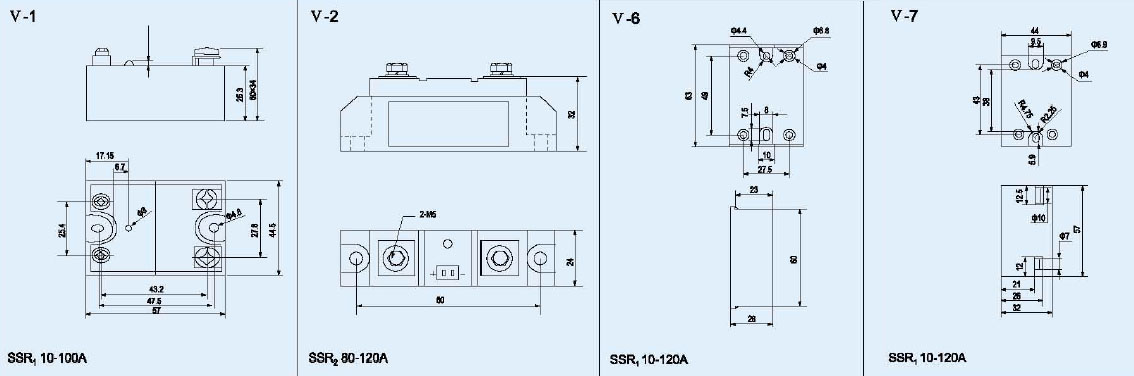

外形尺寸
